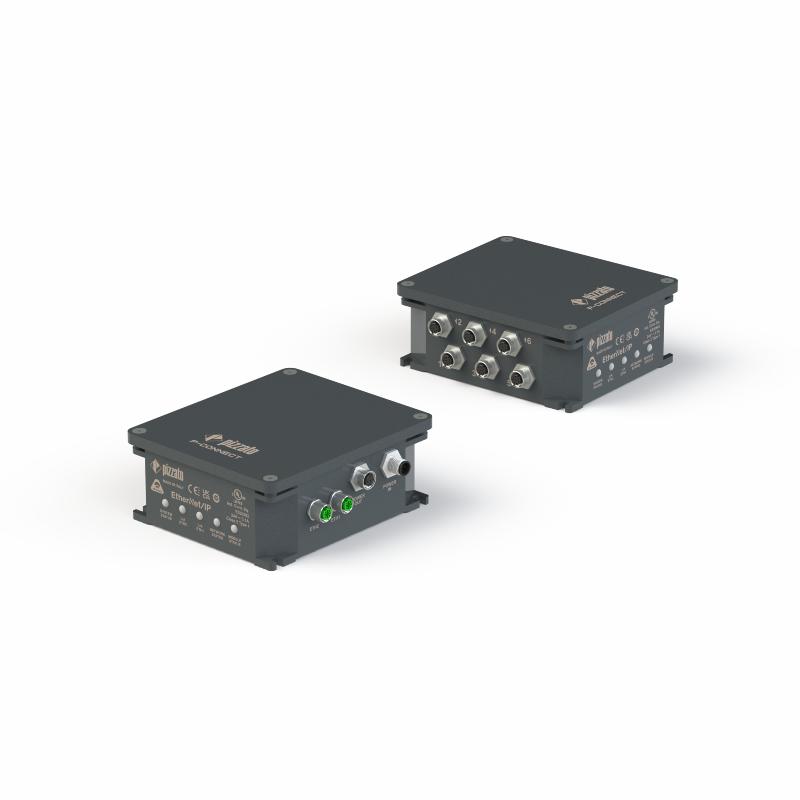

P-Connect connection gateway for safety devices

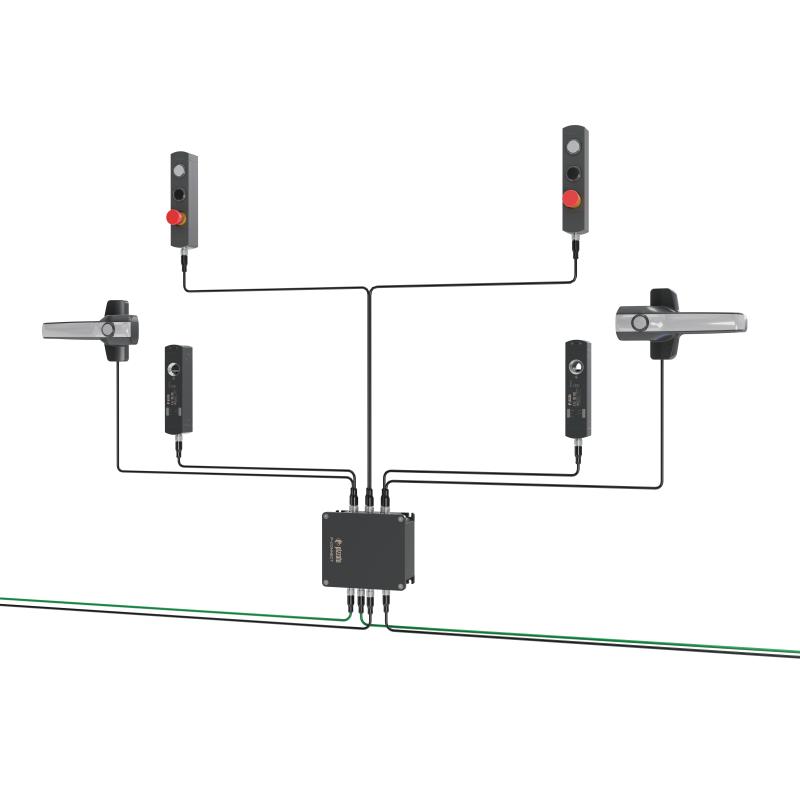

arrow_backTo the overviewThe P-Connect connection gateway is a system that allows up to six devices to be connected to a data network.
This device is capable of connecting multiple Pizzato safety devices to a single PROFINET/PROFIsafe, EtherNet/IPTM/CIP SafetyTM or EtherCAT®/Safety over EtherCAT®network, thus ensuring easy installation, even on very large machinery, while minimising wiring.
In addition, PROFIsafe, CIP SafetyTM and Safety over EtherCAT® functionalities enable the gateway to be used to transmit signals to the PLC regarding safety functions for applications up to SIL3/PLe/Cat. 4.
The P-Connect connection gateway allows quick access to diagnostic data such as internal temperature, gateway supply voltage, or current consumption of the connected devices. Besides, it has integrated signalling LEDs to give the user a quick field diagnostic overview.
P-Connect is a Plug&Play solution that saves installation time compared to traditional solutions that must be wired into a cabinet. What’s more, it can quickly be replaced if there’s a malfunction or if it gets damaged.
This feature also allows several P-Connect gateways to be connected in series by simply connecting together the input and output connectors.

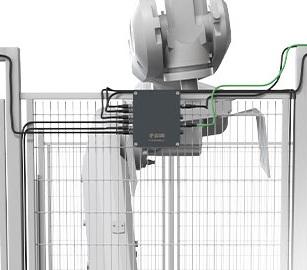

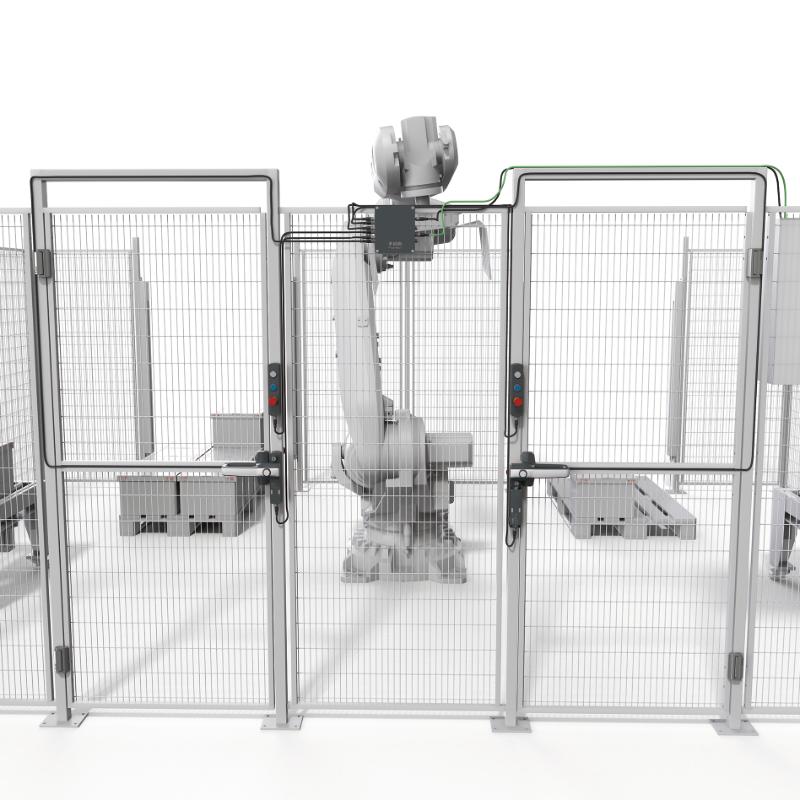

In order to limit the risk of accidental damage or tampering, P-Connect connection gateway can be positioned in safe areas, away from the connected devices.
