Bessteq - 500 kW x ???? kWh BESS (BSLBATT)
arrow_backTo the overviewESS-GRID FlexiO Microgrid Battery

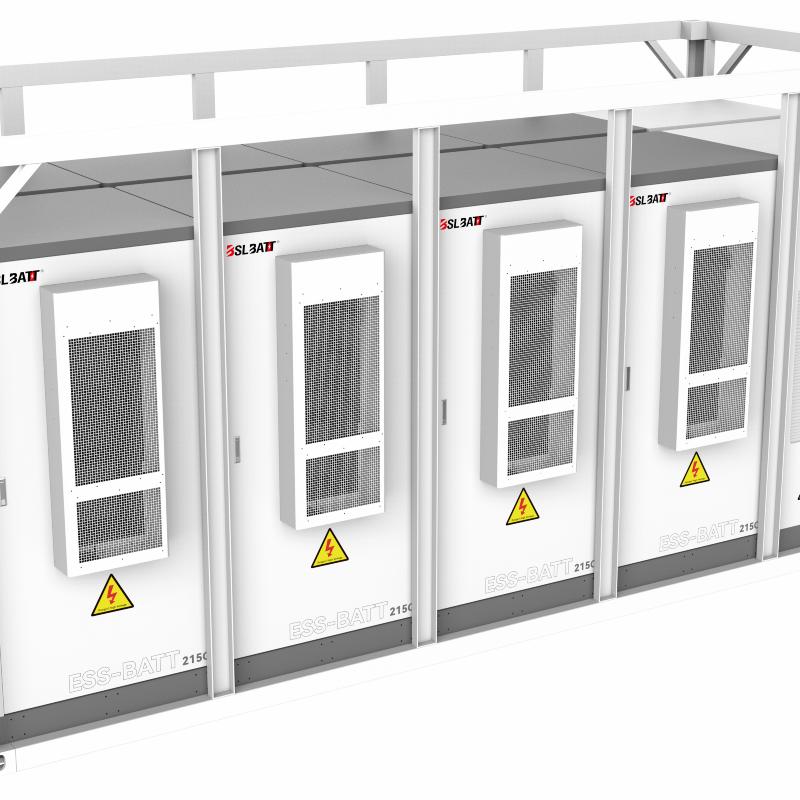

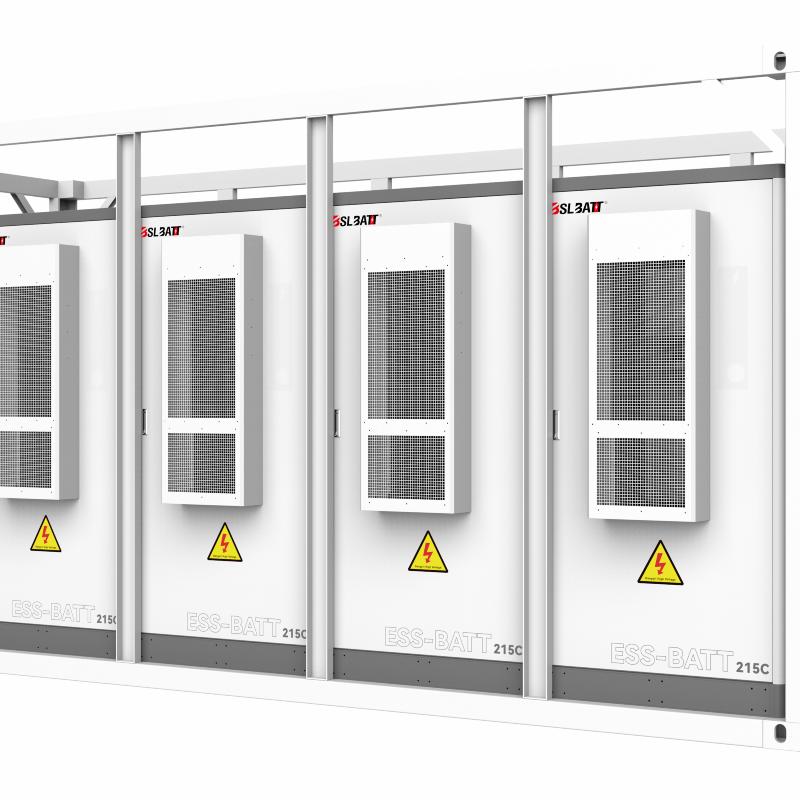

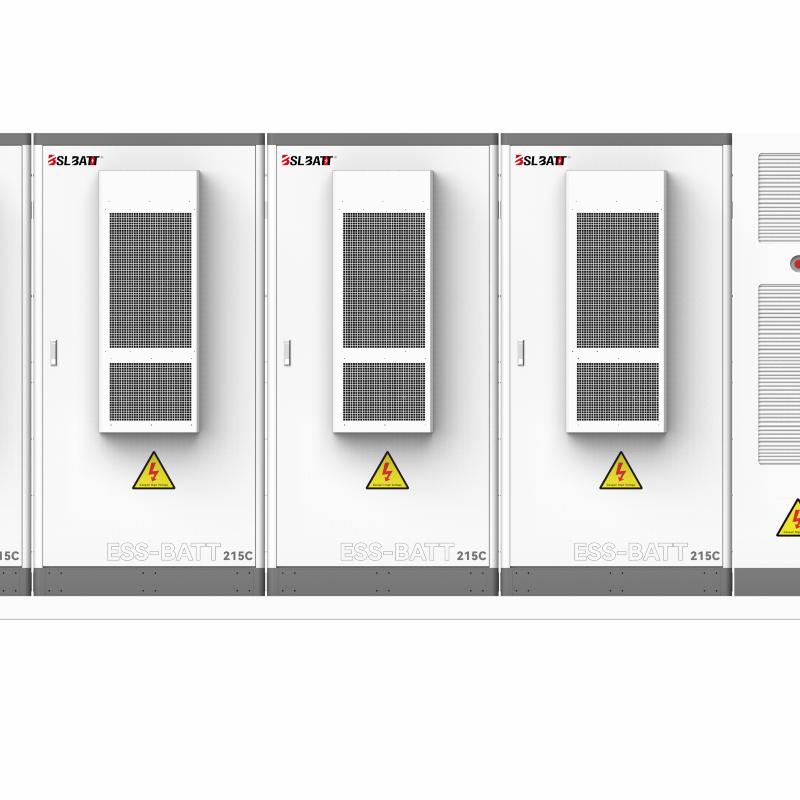

Very flexible battery solution, which easily scales according to actual need. The system consists of 3 elements, where you connect as many of each element as required to combined create the optimal solution. The 3 elements are:

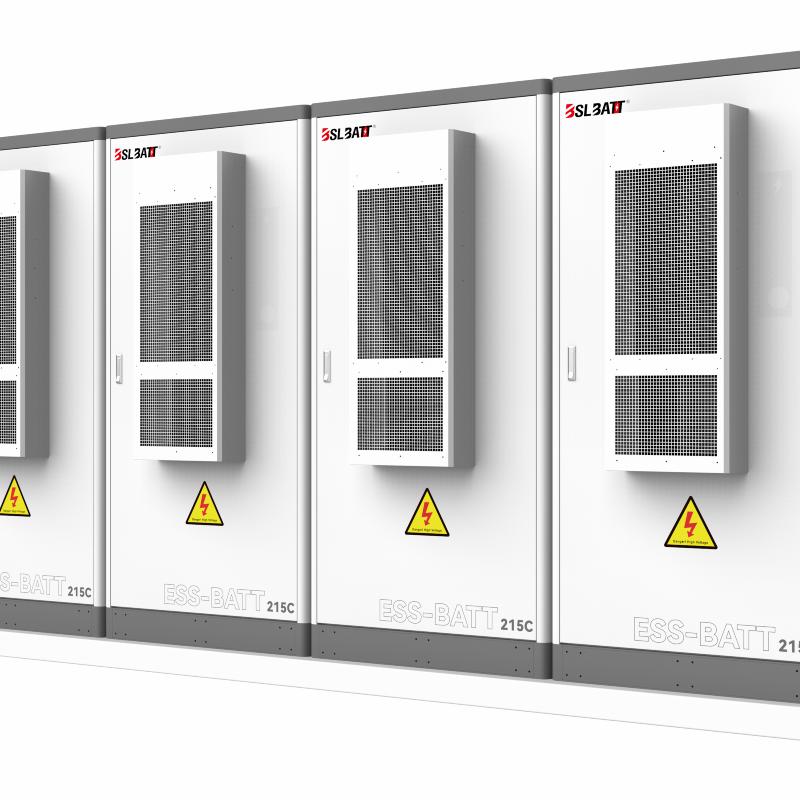

Battery Cabinet:
Each Battery Cabinet has a capacity of 241 KWh and consists of LFP 314 Ah battery cells from the leading manufactures in the world. More Battery Cabinets can be connected in parallel until the required total capacity has been achieved. Each Cabinet has intelligent temperature control through Air-cooling and fire protection in a multi-level design.
PCS Cabinet:
Separate Cabinet for AC/DC conversion. Every Cabinet supports up to 500 kW in steps of 125 kW, and two Cabinets can be interconnected for a maximum power of 1 MW. Connects to grid on 400V AC (3W+N+PE). Supports off-grid operation for power backup of critical equipment during a black-out situation. Intelligent Air-cooling.
DC PV Cabinet:
Cabinet for direct connection of PV to the battery on DC level in order to reduce loss to a minimum. Power up to 500 kW from up to 10 PV circuits. Operation through LCD touch screen.
This system is ideal for integration in micro-grids, rural areas, but also for larger Industry, farming and EV charging infrastructure.
